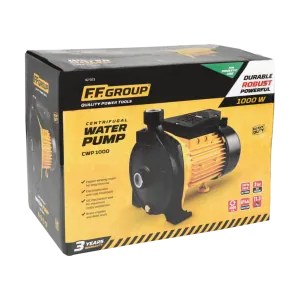

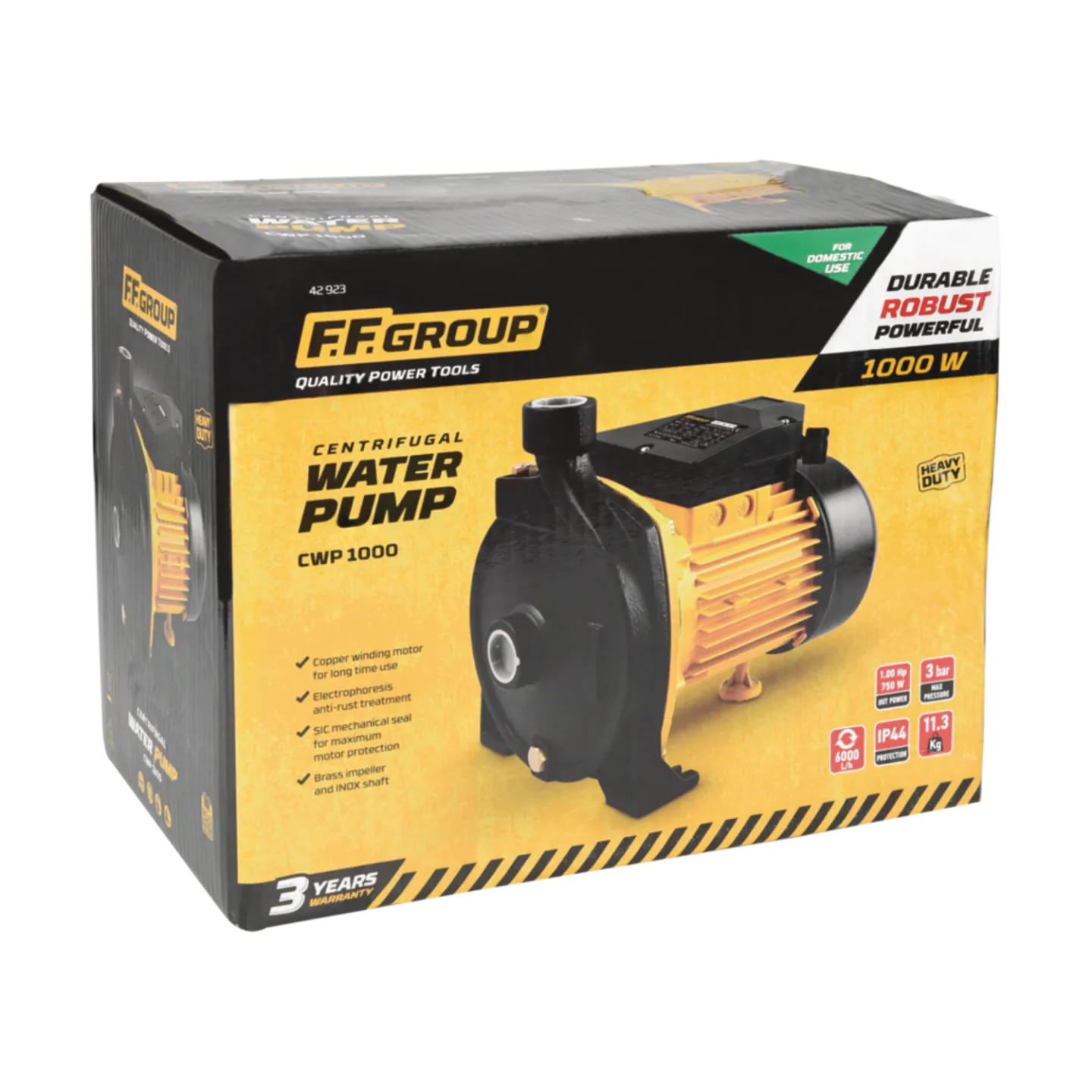

CENTRIFUGAL WATER PUMP CWP 1000 FF Group
- Category
- Water pumps
- Code
- E0801000044
- Manufacturer
- FF Group
- SCODE
- 42923
Pumping from 7m
Copper winding motor for long time use
Brass impeller and INOX shaft
SiC mechanical seal for maximum motor protection
Electrophoresis anti-rust treatment
Engine protection IP44
Treat only the first time
3 years warranty
| Rated voltage | 230 V |
| Power input | 1,0 hp |
| Revolutions per minute | 2.850 min⁻¹ |
| Max pressure | 3 bar |
| Total head lift | 30 m |
| Max flow | 6,5 m³/h |
| Suction port diameter | 1" |
| Discharge port diameter | 1" |
| Input current | 4,6 A |
| Protection rating | IP44 |
| Insulation rating | B |
| Weight | 11,3 kg |
| Performance - Height 23 m | 5,0 m³/h |
| Performance - Height 26 m | 3,7 m³/h |
| Performance - Height 27 m | 2,9 m³/h |
| Performance - Height 29 m | 1,2 m³/h |
