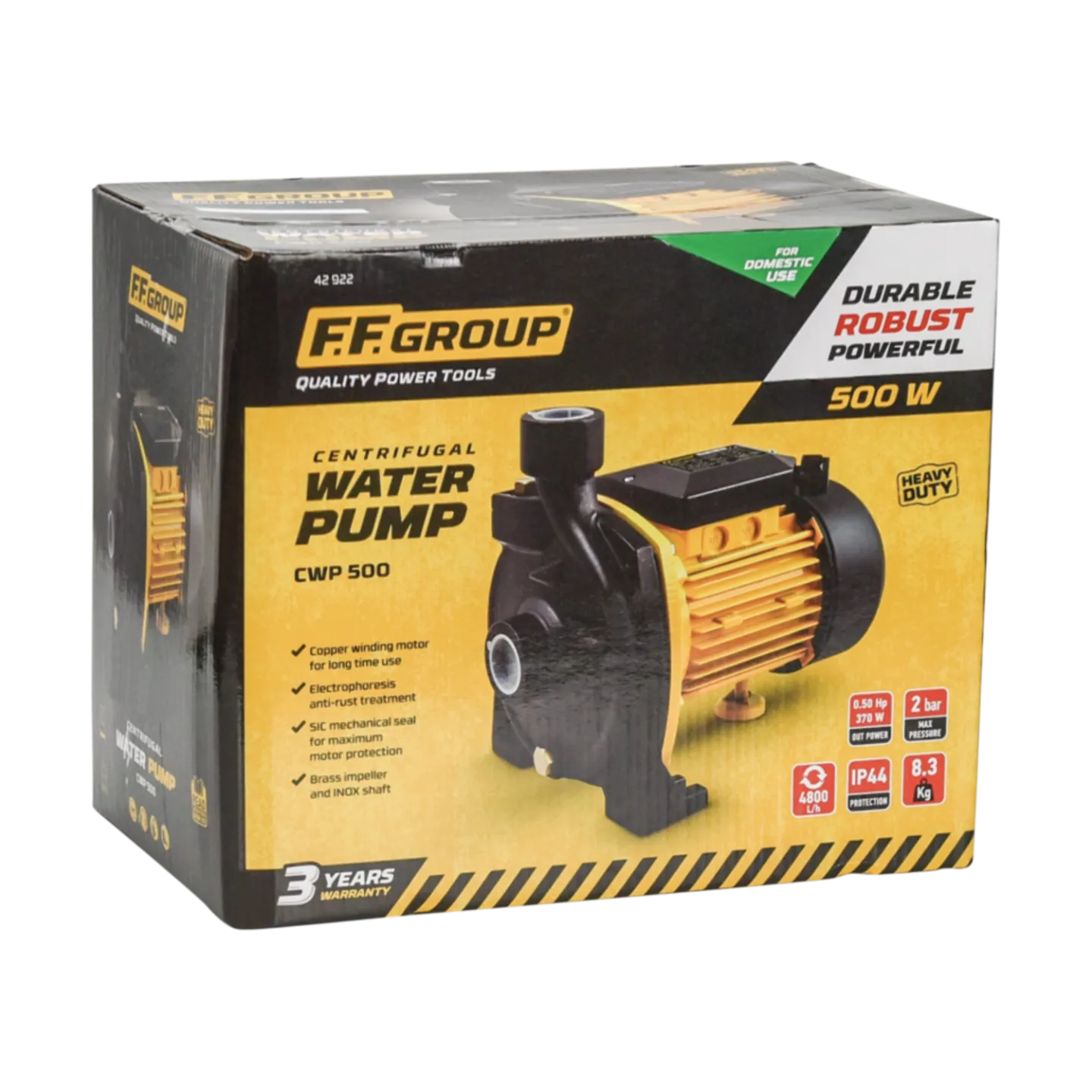

CENTRIFUGAL WATER PUMP CWP 500 FF Group
- Category
- Water pumps
- Code
- E0801000040
- Manufacturer
- FF Group
- SCODE
- 42922
Pumping from 7m
Copper winding motor for long time use
Brass impeller and INOX shaft
SiC mechanical seal for maximum motor protection
Electrophoresis anti-rust treatment
Engine protection IP44
Treat only the first time
3 years warranty
| Rated voltage | 230 V |
| Power input | 0,5 hp |
| Revolutions per minute | 2.850 min⁻¹ |
| Max pressure | 2 bar |
| Total head lift | 20 m |
| Max flow | 5,5 m³/h |
| Suction port diameter | 1" |
| Discharge port diameter | 1" |
| Input current | 2,27 A |
| Protection rating | IP44 |
| Insulation rating | B |
| Weight | 8,3 kg |
| Performance - Height 9 m | 5,3 m³/h |
| Performance - Height 11 m | 4,9 m³/h |
| Performance - Height 14 m | 3,4 m³/h |
| Performance - Height 17 m | 1,5 m³/h |
