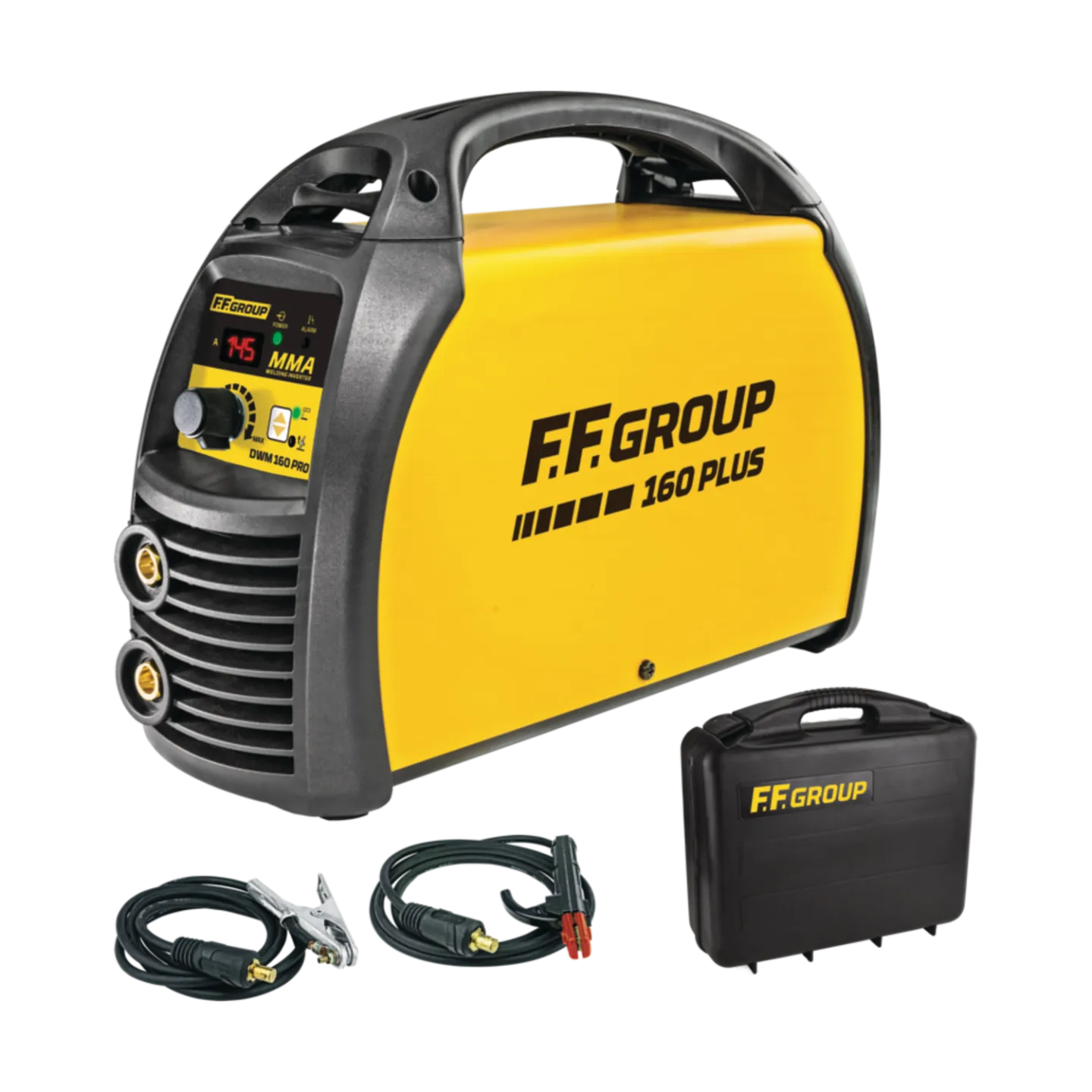

INVERTER WELDER (MMA / TIG) DWM 160 PLUS FF Group
- Category
- Copper weldings-Inverter
- Code
- E0401000012
- Manufacturer
- FF Group
- SCODE
- 45485
Suitable for 2,50 - 3,25 electrode
IGBT advanced technology
Welding electrode type with selection of: 1. BASIC (7018), RUTILE (6013), 2. SCRATCH TIG
Hot start, Anti-sticking technology, Arc force adjustable
Ampere adjustment potentiometer (A), Thermal protection, Engine quick connectors, Digital screen
According to: EN IEC 60974-1 and EN IEC 60974-10
Enclosure protection IP21S
Ergonomic carrying handle
| Rated voltage | 230 V |
| Type | Electrode |
| Current adjustment (MMA) | 20 - 160 A |
| Current adjustment (TIG) | 20 - 160 A |
| Power input | 7,1 kVA |
| Max. rated input current | 31 A |
| No-load voltage (Uo) | 66 V |
| Cooling | Air |
| Mode | MMA |
| Work cycle (MMA) | 25%: 160A |
| 60% | 125A |
| 100% | 100A |
| Work cycle (TIG) | 25%: 160A |
| 60% | 125A |
| 100% | 100A |
| Protection rating | IP21S |
| Cable | 2,3 m |
| Weight | 4,3 kg |
| Dimensions (LxWxH) | 37x11x26 cm |
